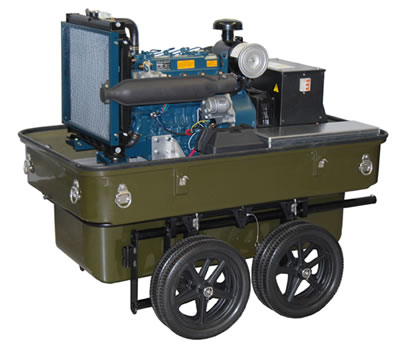

SR2008/09 POWER GENERATION

10.5 kW continuous operation rating with 3 phase 208
10.5kW continuous operation rating single phase
V1305 BG 4 cylinder Kubota engine, tier 2 compliant
1800 RPM
Safety shutdown system for low oil pressure, high temperature & over speed and user defined auxiliary input
12 Volt DC electrical system
Mounted control panel, Deep Sea model 702 with key start and fault LED indicators, hour meter & engine pre-heat
Self bleeding fuel injection system
30 gallon aluminum fuel tank
Electric fuel lift pump
Racor fuel filter/water separator
Pusher fan with guard
Heavy duty replaceable air filter
Spin on lube oil filter
Glow plugs for cold starting
S.A.E. #5 flywheel housing & 61/2" flywheel
Stamford BCI 164C brushless generator end,
12 lead reconnectable with automatic voltage regulator
Mounted volt meter and cycle meter
30 and 15 Amp receptacles as needed
Fuel consumption estimate full load - 1 gallon per hour

LOCKER FOR SPARE PARTS

3 phase unit includes 30' x 30 Amp cord
1 phase unit includes 50' x 50 Amp cord with distribution box
Approximate weight of cart mounted with fuel 1,000 lbs.
Low Sound levels (60dB) at 23 feet.
